Setting Up Vertex Data and Buffer Objects

Welcome back to OpenGL Fundamentals: Your First Triangle! In the previous lesson, you implemented a custom FPS limiter, giving you precise control over your application's frame rate and ensuring smooth, predictable performance. Now we're ready for the exciting next step: rendering our very first piece of geometry to the screen.

In this lesson, we'll transform our blank window into something truly meaningful by drawing a triangle. While a triangle might seem simple, it represents the fundamental building block of all 3D graphics. Every complex model, from characters to environments, is ultimately composed of triangles. We'll explore how to send vertex data to the GPU, configure the graphics pipeline to understand our data, and issue our first draw call.

Before we dive into code, let's build some intuition about how modern graphics rendering works. When we want to draw a triangle, we're not simply drawing pixels directly to the screen. Instead, we send vertex data to the GPU, which then processes this information through a sophisticated pipeline.

The GPU expects our triangle as three points in space, each defined by coordinates. These points, called vertices, contain the geometric information that describes our triangle's shape and position. The graphics pipeline takes these vertices, transforms them if needed, and ultimately determines which pixels on the screen should be colored to represent our triangle.

This process involves several key OpenGL objects that work together: Vertex Buffer Objects store our vertex data in GPU memory, while Vertex Array Objects describe how that data should be interpreted. Understanding these concepts is crucial because they form the foundation of all OpenGL rendering.

Our journey begins with defining the actual geometry of our triangle. In OpenGL, we describe shapes using vertices, and for a triangle, we need exactly three points in 3D space.

// Triangle vertices (this is what we're focusing on!)
float verts[] = {0.0f, 0.5f, 0.0f, -0.5f, -0.5f, 0.0f, 0.5f, -0.5f, 0.0f};

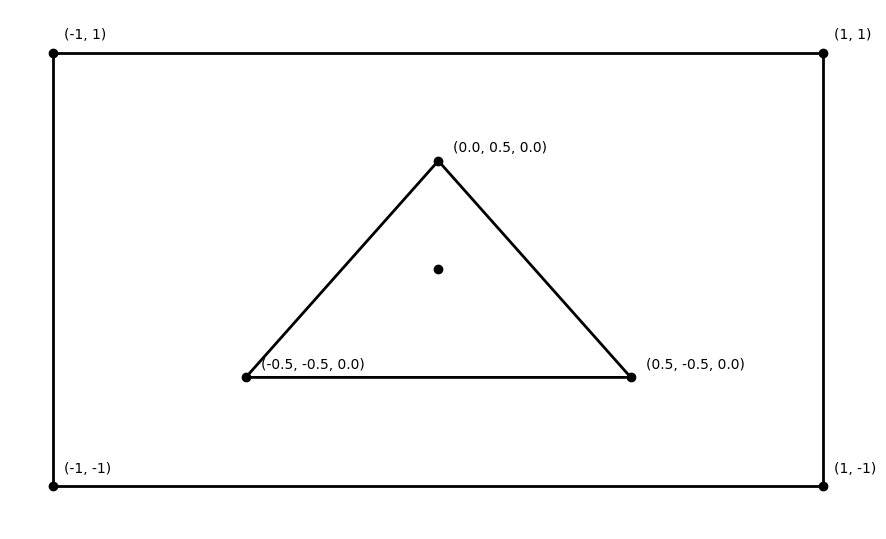

This array contains nine floating-point numbers representing three vertices. Each vertex consists of three coordinates: x, y, and z. The first vertex (0.0, 0.5, 0.0) sits at the top center of our screen, while the other two vertices (-0.5, -0.5, 0.0) and (0.5, -0.5, 0.0) form the bottom corners. Notice how all z-coordinates are zero, keeping our triangle flat against the screen. These coordinates use OpenGL's normalized device coordinates, where values range from -1 to 1 across each axis. This means that no matter what window size GLFW has prepared for us, OpenGL's internal coordinate space is always constant.
