Introduction

Welcome back to OpenGL Fundamentals: Your First Triangle! In our previous lesson, we finally brought our triangle to life by creating our first GLSL shaders. We saw our orange-red triangle appear on screen, completing the essential rendering pipeline from vertex data to visible pixels. Today, we're taking a significant step forward in our fourth lesson by learning about efficient geometry rendering . While our single triangle worked perfectly, real graphics applications need to render more complex shapes efficiently. We'll explore how to render a square using only four vertices instead of six, introducing the concept of Index Buffer Objects . This technique eliminates duplicate vertex data and demonstrates a fundamental optimization that professional graphics programmers use daily. By the end of this lesson, we'll have a more efficient rendering system that scales beautifully as our geometry becomes more complex.

The Problem with Duplicate Vertices

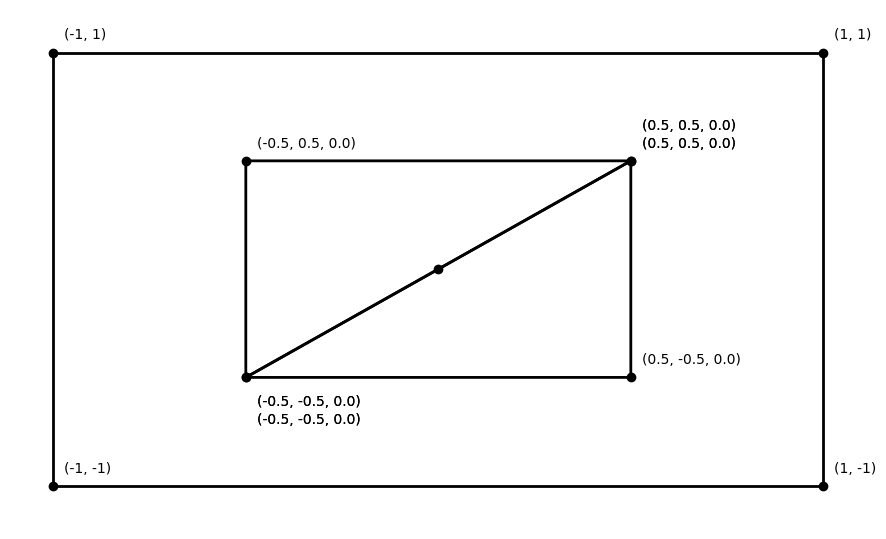

As we start building more complex shapes, we quickly encounter a significant inefficiency in our current approach. Let's consider what happens when we want to render a simple square instead of a triangle: we need two triangles to form the complete square shape. Using our current glDrawArrays approach, we would need to define six vertices in total: three for each triangle. However, since the two triangles share an edge, we end up duplicating two vertices completely. The bottom-left and top-right corners appear twice in our vertex data, wasting both memory and processing power. For a simple square, this duplication might seem trivial, but imagine a complex 3D model with thousands of shared vertices — the waste becomes substantial. This duplication problem gets worse as geometry becomes more complex. In typical 3D meshes, each vertex is shared by multiple triangles, meaning we could be storing the same vertex data three, four, or even more times. This redundancy not only wastes GPU memory but also forces the vertex shader to process the same vertex multiple times unnecessarily.

Introduction to Index Buffers

Index buffers solve the duplicate vertex problem elegantly by separating vertex data from the information about how vertices connect to form triangles. Instead of duplicating vertex positions, we store each unique vertex only once and use a separate array of indices to specify which vertices form each triangle. Think of it like a recipe that references ingredients by number rather than listing them repeatedly. Our vertex array becomes like an ingredient list where each vertex has a position (index 0, 1, 2, 3), and our index array becomes like recipe instructions that say, "combine ingredients 0, 1, and 2 for the first triangle, then combine 0, 2, and 3 for the second triangle." This approach is not only more memory-efficient but also allows the GPU to reuse vertex shader results when the same vertex appears in multiple triangles. The Element Buffer Object (EBO) is OpenGL's implementation of index buffers. Just like our Vertex Buffer Object stores vertex data, the EBO stores our index data on the GPU. OpenGL provides the glDrawElements function specifically for rendering with indices, replacing our previous glDrawArrays calls.

Sign up

Join the 1M+ learners on CodeSignal

Be a part of our community of 1M+ users who develop and demonstrate their skills on CodeSignal

Defining Square Geometry Efficiently

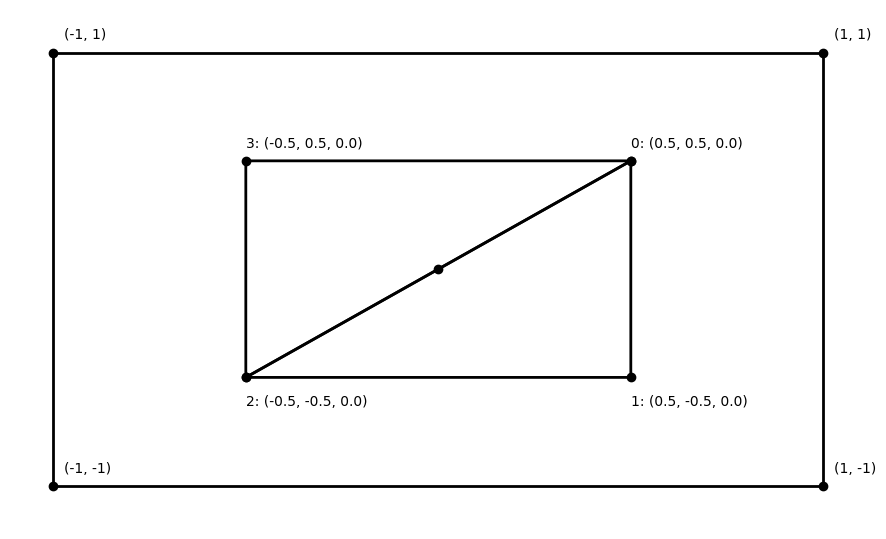

Let's define our square using the efficient indexed approach. We need exactly four vertices for the corners and six indices to specify how these vertices connect into two triangles. // Four unique vertices for square corners float verts[] = {0.5f, 0.5f, 0.0f, // top right (index 0) 0.5f, -0.5f, 0.0f, // bottom right (index 1) -0.5f, -0.5f, 0.0f, // bottom left (index 2) -0.5f, 0.5f, 0.0f // top left (index 3)}; // Indices defining two triangles unsigned int idx[] = {0, 1, 2, // first triangle (bottom-right) 0, 2, 3 // second triangle (top-left)}; Our vertex array now contains exactly four unique 3D positions, one for each corner of the square. Each vertex is labeled with its index position for clarity: 0 for top-right, 1 for bottom-right, 2 for bottom-left, and 3 for top-left. The index array uses unsigned int values to reference these vertex positions. The first triangle uses vertices 0, 1, 2 (forming the bottom-right triangle), while the second uses vertices 0, 2, 3 (forming the top-left triangle). Notice how vertices 0 and 2 are reused between triangles without duplicating their actual position data.

Creating the Element Buffer Object

Now we need to create and configure our Element Buffer Object to store the index data on the GPU. This follows the same pattern as our Vertex Buffer Object but uses a different binding target. GLuint vao, vbo, ebo; glGenVertexArrays(1, &vao); glGenBuffers(1, &vbo); glGenBuffers(1, &ebo); // Generate our new Element Buffer Object glBindVertexArray(vao); glBindBuffer(GL_ARRAY_BUFFER, vbo); glBufferData(GL_ARRAY_BUFFER, sizeof(verts), verts, GL_STATIC_DRAW); // Bind and upload index data glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo); glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(idx), idx, GL_STATIC_DRAW); We generate three buffer objects now: the VAO and VBO from previous lessons, plus our new EBO. The vertex data setup remains identical to our previous triangle: we bind the VBO to GL_ARRAY_BUFFER and upload our vertex positions. The crucial new step is binding our EBO to GL_ELEMENT_ARRAY_BUFFER and uploading our index data using the same glBufferData function. The GL_ELEMENT_ARRAY_BUFFER target tells OpenGL this buffer contains indices rather than vertex attributes. Just like our vertex data, we specify GL_STATIC_DRAW since our index data won't change during rendering. As always, when we're done with our buffer objects, we should properly clean up by releasing the EBO along with our other OpenGL resources: glDeleteBuffers(1, &ebo); glDeleteBuffers(1, &vbo); glDeleteVertexArrays(1, &vao);

Configuring Vertex Attributes with Indices

The vertex attribute configuration remains exactly the same as in our previous lessons, demonstrating how seamlessly indexed rendering integrates with our existing pipeline. glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0); glEnableVertexAttribArray(0); Even though we're now using indexed rendering, vertex attributes work identically. We tell OpenGL that attribute 0 contains three GL_FLOAT values per vertex, with no normalization needed, a stride of 3 * sizeof(float) bytes between vertices, and starting at offset 0. Our vertex shader will still receive position data through the aPos input variable, and our fragment shader will still color each pixel the same warm orange-red color. The beauty of this approach is that our shaders remain completely unchanged while gaining significant efficiency benefits.

Rendering with Index Buffers

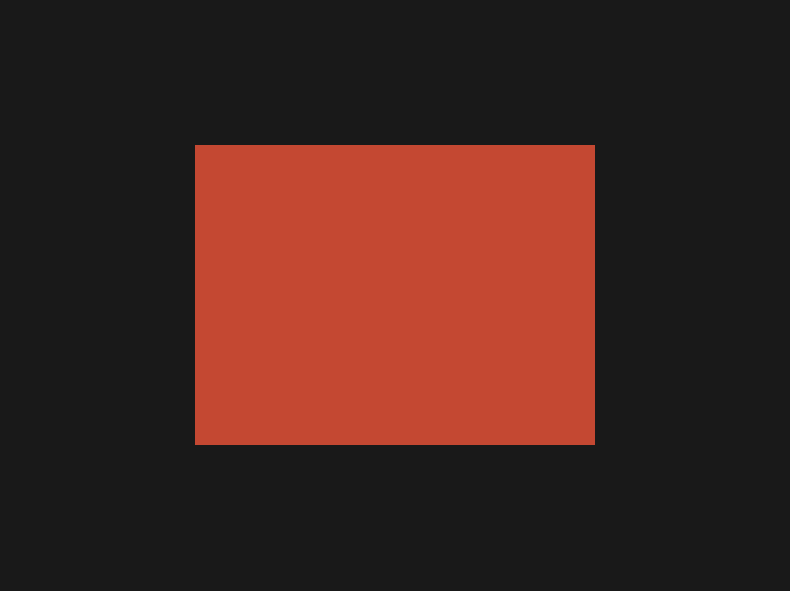

With our EBO configured and bound within our VAO, we can now render our square using the more efficient glDrawElements function instead of glDrawArrays . glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0); The glDrawElements function takes four parameters that control indexed rendering. The first parameter, GL_TRIANGLES, specifies we're drawing triangular primitives, just like with glDrawArrays . The second parameter, 6, indicates how many indices to process — we have six indices in total (three for each triangle). The third parameter, GL_UNSIGNED_INT, specifies the data type of our indices, matching our unsigned int idx[] declaration. The final parameter, 0, is an offset into the index buffer, which we set to zero to start from the beginning. When OpenGL executes this call, it reads six indices from our bound EBO, looks up the corresponding vertices in our VBO, and processes them through our shaders. The vertices at index 0 and index 2 will be processed only once each, even though they appear in multiple triangles, demonstrating the efficiency gain of indexed rendering.

C++

// Four unique vertices for square corners
float verts[] = {
     0.5f,  0.5f, 0.0f,    // top right    (index 0)
     0.5f, -0.5f, 0.0f,    // bottom right (index 1)
    -0.5f, -0.5f, 0.0f,    // bottom left  (index 2)
    -0.5f,  0.5f, 0.0f     // top left     (index 3)
};

// Indices defining two triangles
unsigned int idx[] = {
    0, 1, 2,    // first triangle (bottom-right)
    0, 2, 3     // second triangle (top-left)
};

C++

GLuint vao, vbo, ebo;
glGenVertexArrays(1, &vao);
glGenBuffers(1, &vbo);
glGenBuffers(1, &ebo);  // Generate our new Element Buffer Object

glBindVertexArray(vao);
glBindBuffer(GL_ARRAY_BUFFER, vbo);
glBufferData(GL_ARRAY_BUFFER, sizeof(verts), verts, GL_STATIC_DRAW);

// Bind and upload index data
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo);
glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(idx), idx, GL_STATIC_DRAW);
