Introduction

Welcome to the first lesson of our Advanced Rendering and Visual Effects course! We are embarking on an exciting journey that will transform your understanding of realistic computer graphics. In this opening lesson, we will explore how to create convincing material surfaces using specular maps, a fundamental technique that separates amateur-looking renders from professional-quality graphics. Most real-world materials do not reflect light uniformly across their surfaces. A scratched metal panel has shiny areas where the metal is smooth and dull areas where it is roughened. A leather jacket might have glossy patches from wear while remaining matte in protected areas. Specular maps allow us to capture these subtle variations that make materials feel authentic and believable.

Understanding Material Properties

Before we dive into implementation, let's refresh our intuition about how light interacts with different materials. When light hits a surface, it can be reflected in two primary ways: diffuse reflection and specular reflection . Diffuse reflection scatters light in all directions, giving us the base color we see regardless of our viewing angle. This is why a red wall appears red from any position. Specular reflection, however, bounces light directly like a mirror, creating highlights that change based on our viewpoint and the light source's position. The key insight is that different areas of the same material can have vastly different specular properties. Think of a car's paint job: the main body panels are glossy and reflective, while rubber trim pieces are matte and non-reflective. A single material can exhibit this variation across its surface, and specular maps let us define these variations pixel by pixel.

Specular Maps Concept

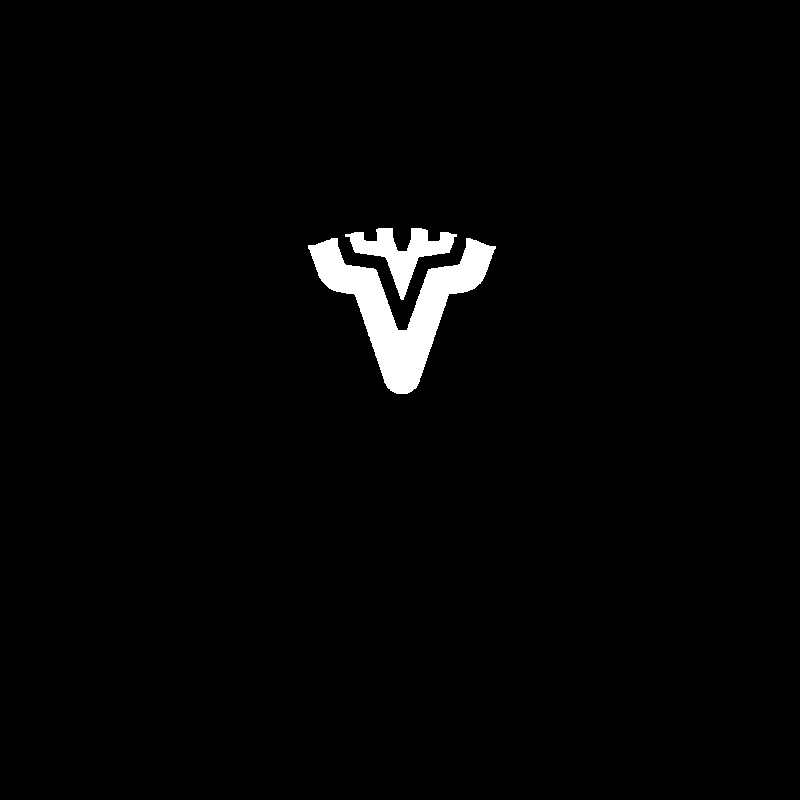

A specular map is a grayscale texture that controls the intensity of specular highlights across a surface. White pixels indicate highly reflective areas that will produce bright highlights, while black pixels represent matte areas that reflect very little light specularly. Gray values create intermediate levels of reflectivity. This approach gives us incredible control over material appearance. Instead of having uniform shininess across an entire object, we can paint exactly where we want glossy reflections and where we want matte surfaces. The specular map acts as a mask that modulates the specular lighting calculation on a per-pixel basis. The beauty of this system lies in its flexibility: we can create complex, varied materials using simple grayscale images that artists can paint or generate procedurally.

Sign up

Join the 1M+ learners on CodeSignal

Be a part of our community of 1M+ users who develop and demonstrate their skills on CodeSignal

Fragment Shader Implementation

Let's examine how we implement specular mapping in our fragment shader. The key addition is sampling our specular map and using it to modulate the specular reflection calculation. uniform sampler2D uSpecularMap; void main() {// ... previous lighting calculations ... vec3 specularIntensity = texture(uSpecularMap, vUV).rgb; float spec = pow(max(dot(V, R), 0.0), 64.0); vec3 specular = spec * lightColor * specularIntensity; FragColor = vec4(ambient + diffuse + specular, 1.0);} The crucial line here is where we sample our specular map using texture(uSpecularMap, vUV).rgb . This gives us a color value that we use as specularIntensity . We then multiply our calculated specular reflection by this intensity value, effectively masking the specular contribution based on our texture. Notice how we sample the RGB channels rather than just a single channel: this allows for colored specular reflections, though most specular maps use grayscale values for simplicity.

Texture Loading and Binding

Our application needs to load and bind multiple textures simultaneously. We extend our texture loading system to handle the diffuse texture, normal map, and specular map together. GLuint diffuseTexture = loadTexture("textures/cosmo.jpg"); GLuint normalTexture = loadTexture("textures/normal.jpg"); GLuint specularTexture = loadTexture("textures/specular.jpg"); // Set texture uniforms to different texture units glUniform1i(texLoc, 0); // Texture unit 0 glUniform1i(normalLoc, 1); // Texture unit 1 glUniform1i(specularLoc, 2); // Texture unit 2 We assign each texture to a different texture unit, allowing our shader to access all three simultaneously. The uniform integers tell our shader which texture unit corresponds to which sampler, creating the connection between our loaded textures and the shader's sampling operations. This multi-texture approach is essential for modern material systems, where multiple maps work together to define surface properties.

Complete Integration

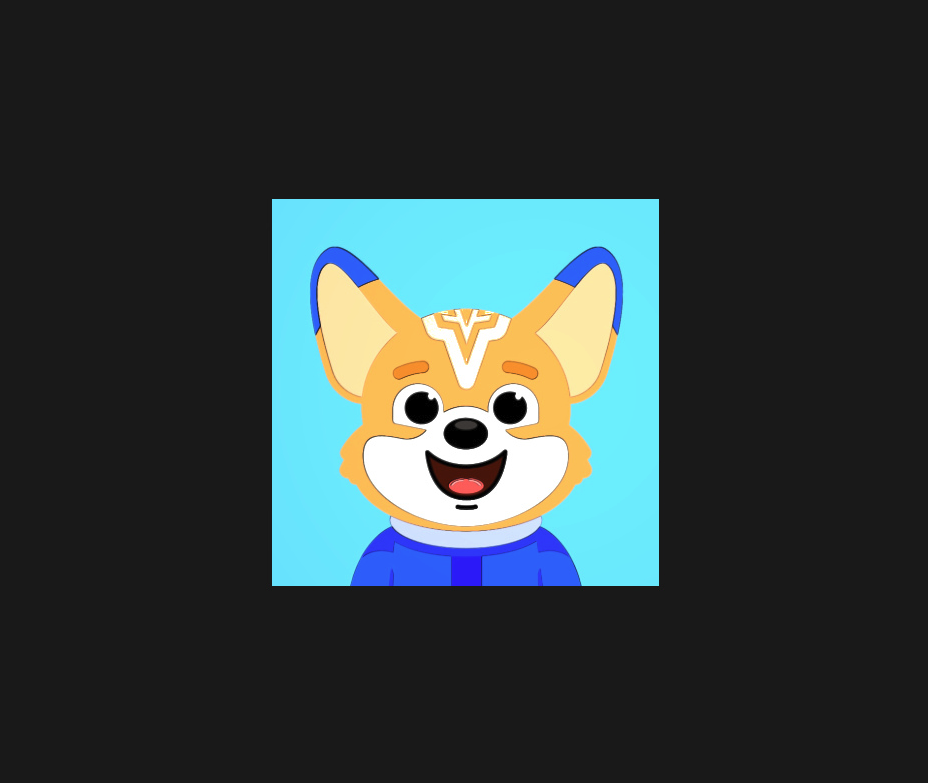

In our main rendering loop, we bind all three textures before drawing our model, ensuring they are available to our shader during the rendering process. // Bind textures to their respective units glActiveTexture(GL_TEXTURE0); glBindTexture(GL_TEXTURE_2D, diffuseTexture); glActiveTexture(GL_TEXTURE1); glBindTexture(GL_TEXTURE_2D, normalTexture); glActiveTexture(GL_TEXTURE2); glBindTexture(GL_TEXTURE_2D, specularTexture); // Update uniforms and draw glUniformMatrix4fv(modelLoc, 1, GL_FALSE, glm::value_ptr(modelMatrix)); glUniformMatrix4fv(viewLoc, 1, GL_FALSE, glm::value_ptr(camera.getViewMatrix())); glUniform3fv(viewPosLoc, 1, glm::value_ptr(camera.getPosition())); model.Draw(shaderProgram); This integration demonstrates how all the pieces work together: our model provides the geometry and texture coordinates, our textures provide the material data, and our shader combines everything into the final pixel colors. The camera position is particularly important for specular calculations since reflections depend on the viewing angle.

glsl

uniform sampler2D uSpecularMap;

void main() {
    // ... previous lighting calculations ...

    vec3 specularIntensity = texture(uSpecularMap, vUV).rgb;
    float spec = pow(max(dot(V, R), 0.0), 64.0);
    vec3 specular = spec * lightColor * specularIntensity;

    FragColor = vec4(ambient + diffuse + specular, 1.0);
}

C++

GLuint diffuseTexture = loadTexture("textures/cosmo.jpg");
GLuint normalTexture = loadTexture("textures/normal.jpg");
GLuint specularTexture = loadTexture("textures/specular.jpg");

// Set texture uniforms to different texture units
glUniform1i(texLoc, 0);     // Texture unit 0
glUniform1i(normalLoc, 1);  // Texture unit 1
glUniform1i(specularLoc, 2); // Texture unit 2

C++

// Bind textures to their respective units
glActiveTexture(GL_TEXTURE0);
glBindTexture(GL_TEXTURE_2D, diffuseTexture);
glActiveTexture(GL_TEXTURE1);
glBindTexture(GL_TEXTURE_2D, normalTexture);
glActiveTexture(GL_TEXTURE2);
glBindTexture(GL_TEXTURE_2D, specularTexture);

// Update uniforms and draw
glUniformMatrix4fv(modelLoc, 1, GL_FALSE, glm::value_ptr(modelMatrix));
glUniformMatrix4fv(viewLoc, 1, GL_FALSE, glm::value_ptr(camera.getViewMatrix()));
glUniform3fv(viewPosLoc, 1, glm::value_ptr(camera.getPosition()));

model.Draw(shaderProgram);
