Image Filter Pipeline

Welcome back to Image Processing with CUDA. We are now at lesson 3, so we have enough foundation to build something that feels much closer to a real image workflow. As you may recall from the previous lessons, we have already practiced a direct pixel transform and a neighborhood-based filter. Now, we will connect those ideas into one complete flow.

Our goal is an image filter pipeline: first, convert an RGB image to grayscale, then apply a Sobel edge detector to that grayscale result. By the end of this lesson, we will understand the GPU path, the matching CPU reference, and the final validation step that confirms the whole pipeline works correctly.

A Sobel filter looks for changes in brightness, not for color by itself. Because of that, it makes sense to first turn each RGB pixel into a single intensity value and then run edge detection on that simpler image. This keeps the second stage focused and easier to reason about.

The two core formulas are:

Here is the big picture:

• Stage 1: reduce three color channels to one grayscale channel
• Stage 2: measure horizontal and vertical intensity change
• Final result: bright values where strong edges appear

We begin with the same careful setup style used in earlier lessons: standard headers (iostream, vector, fstream, cmath, cstdlib, cuda_runtime.h), a CUDA_CHECK macro, image sizes, and host vectors.

To make our kernels more efficient, we also declare our Sobel coefficients in __constant__ memory. Unlike local arrays inside a kernel, __constant__ memory is a specialized read-only cache that is shared by all threads. This is a common real-world CUDA pattern for fixed filter weights.

#include <iostream>
#include <vector>
#include <fstream>
#include <cmath>
#include <cstdlib>
#include <cuda_runtime.h>

#define CUDA_CHECK(call)                                                     \
do {                                                                         \
    cudaError_t err = (call);                                                \
    if (err != cudaSuccess) {                                                \
        std::cerr << "CUDA Error: " << cudaGetErrorString(err)               \
                  << " at " << __FILE__ << ":" << __LINE__ << std::endl;     \
        exit(EXIT_FAILURE);                                                  \
    }                                                                        \
} while (0)

__constant__ int c_Gx[3][3];
__constant__ int c_Gy[3][3];

int main() {
    const int W = 64, H = 64;
    const size_t rgbBytes = W * H * 3;
    const size_t grayBytes = W * H;

    std::vector<unsigned char> h_rgb(rgbBytes);
    std::vector<unsigned char> h_sobel(grayBytes, 0);
    std::vector<unsigned char> h_gray_ref(grayBytes, 0);
    std::vector<unsigned char> h_sobel_ref(grayBytes, 0);

In previous kernels, we have declared small arrays directly inside the kernel. However, for fixed data like the Sobel convolution kernels, __constant__ memory is much more efficient. It resides in a special memory space that is cached on the GPU. When all threads in a warp read the same location in constant memory—which happens here as every thread applies the same $3 \times 3$ weights—the hardware broadcasts that value to all threads in a single cycle.

Because __constant__ variables have a different lifetime and scope than standard device pointers, we cannot use cudaMemcpy to fill them. Instead, we use cudaMemcpyToSymbol. This function tells the CUDA driver to look up the specific symbol name in the compiled device code and copy the host data into that protected memory region.

Before launching kernels, we need input data that makes edges easy to spot. The code builds a bright yellowish square on top of a dark blueish background. That shape is perfect for Sobel because the border of the square creates strong brightness changes, while the flat inside and outside regions stay mostly calm. The program also writes the raw RGB bytes to a file for inspection.

    for (int y = 0; y < H; ++y) {
        for (int x = 0; x < W; ++x) {
            int i = (y * W + x) * 3;
            bool isInside = (x > 16 && x < 48 && y > 16 && y < 48);
            if (isInside) {
                h_rgb[i]     = 255; // Red
                h_rgb[i + 1] = 200; // Green
                h_rgb[i + 2] = 50;  // Blue
            } else {
                h_rgb[i]     = 30;  // Dark Red
                h_rgb[i + 1] = 60;  // Dark Green
                h_rgb[i + 2] = 180; // Blue
            }
        }
    }

    std::ofstream before("before.raw", std::ios::binary);
    before.write(reinterpret_cast<const char*>(h_rgb.data()), h_rgb.size());
    before.close();

By using different values for R, G, and B, we can see how the grayscale conversion weights each color channel differently. The before.raw file preserves the exact input bytes.

As in the earlier lessons, we first create a CPU version of the operation. This provides a trusted answer before we involve the GPU. The grayscaleCPU function is compact because it is a pixelwise transform: each output position depends only on the matching RGB pixel, not on nearby neighbors. That makes it a clean first stage for the pipeline.

void grayscaleCPU(const std::vector<unsigned char>& rgb,
                  std::vector<unsigned char>& gray,
                  int w, int h) {
    for (int i = 0; i < w * h; ++i) {
        gray[i] = static_cast<unsigned char>(
            0.299f * rgb[i * 3] +
            0.587f * rgb[i * 3 + 1] +
            0.114f * rgb[i * 3 + 2]
        );
    }
}

The loop runs once per pixel, not once per byte. For each pixel index i, the red value lives at rgb[i * 3], the green at rgb[i * 3 + 1], and the blue at rgb[i * 3 + 2]. The weighted sum follows the standard luminosity rule, then casts the result back to unsigned char. This function produces the grayscale image that the CPU Sobel stage will read next.

Now, the CPU reference moves from a simple pixel formula to a neighborhood operation. For each output pixel, the code reads a 3 x 3 area around it, applies one kernel for horizontal change and another for vertical change, then combines both responses into one edge strength value. This mirrors the logic we will later place on the GPU.

void sobelCPU(const std::vector<unsigned char>& in,
              std::vector<unsigned char>& out,
              int w, int h) {
    int Gx[3][3] = {{-1, 0, 1}, {-2, 0, 2}, {-1, 0, 1}};
    int Gy[3][3] = {{-1, -2, -1}, { 0, 0, 0}, { 1, 2, 1}};

    for (int y = 0; y < h; ++y) {
        for (int x = 0; x < w; ++x) {
            float sumX = 0, sumY = 0;
            for (int ky = -1; ky <= 1; ++ky) {
                for (int kx = -1; kx <= 1; ++kx) {
                    int nx = x + kx, ny = y + ky;
                    if (nx >= 0 && nx < w && ny >= 0 && ny < h) {
                        float pixel = in[ny * w + nx];
                        sumX += pixel * Gx[ky + 1][kx + 1];
                        sumY += pixel * Gy[ky + 1][kx + 1];
                    }
                }
            }
            float mag = std::sqrt(sumX * sumX + sumY * sumY);
            out[y * w + x] = (mag > 255.0f) ? 255 : (unsigned char)mag;
        }
    }
}

There are three ideas to notice here:

• Gx reacts to left versus right intensity change
• Gy reacts to top versus bottom intensity change
• The final magnitude combines both, then clamps large values to 255

The bounds check inside the neighbor loops protects the image borders, where some surrounding positions do not exist.

The first GPU kernel should feel familiar from lesson 1. Each thread maps to one image location, checks whether that location is inside the image, and then computes one grayscale value. Even though this is the first stage of a larger pipeline, it is still a clean, one-pixel-to-one-output operation, which makes it a good kernel to launch first.

__global__ void convertToGrayscale(const unsigned char* rgb,
                                   unsigned char* gray,
                                   int w, int h) {
    int x = blockIdx.x * blockDim.x + threadIdx.x;
    int y = blockIdx.y * blockDim.y + threadIdx.y;

    if (x < w && y < h) {
        int i = y * w + x;
        gray[i] = static_cast<unsigned char>(
            0.299f * rgb[i * 3] +
            0.587f * rgb[i * 3 + 1] +
            0.114f * rgb[i * 3 + 2]
        );
    }
}

The mapping from blockIdx, blockDim, and threadIdx to (x, y) is the same pattern we have already used. Once the thread knows its pixel coordinates, i = y * w + x converts that 2D location into a linear index for the grayscale image. From there, the thread reads the three RGB bytes, applies the luminosity weights, and writes one byte into gray.

The second kernel is the heart of the lesson. Each thread still owns one output pixel, but now it must read a small neighborhood from the grayscale image. Instead of declaring the coefficients inside the function, it reads them from the global c_Gx and c_Gy __constant__ arrays we defined earlier.

__global__ void applySobelFilter(const unsigned char* in,
                                 unsigned char* out,
                                 int w, int h) {
    int x = blockIdx.x * blockDim.x + threadIdx.x;
    int y = blockIdx.y * blockDim.y + threadIdx.y;

    if (x >= w || y >= h) return;

    float sumX = 0.0f;
    float sumY = 0.0f;

    for (int ky = -1; ky <= 1; ky++) {
        for (int kx = -1; kx <= 1; kx++) {
            int nx = x + kx;
            int ny = y + ky;
            if (nx >= 0 && nx < w && ny >= 0 && ny < h) {
                float pixel = static_cast<float>(in[ny * w + nx]);
                sumX += pixel * c_Gx[ky + 1][kx + 1];
                sumY += pixel * c_Gy[ky + 1][kx + 1];
            }
        }
    }

    float magnitude = sqrtf(sumX * sumX + sumY * sumY);
    out[y * w + x] = (magnitude > 255.0f) ? 255 : (unsigned char)magnitude;
}

This kernel closely matches the CPU reference, which is exactly what we want for validation. By using __constant__ memory, we ensure that every thread in a warp accesses the same coefficient simultaneously, which is highly optimized by the hardware. Finally, sqrtf computes the gradient magnitude, and the result is clamped so it fits into one byte.

With both CPU functions and both GPU kernels ready, the main program can execute the complete workflow. First, it initializes the __constant__ memory using cudaMemcpyToSymbol. Then, it builds the CPU reference, allocates device memory, and launches the kernels in sequence.

    grayscaleCPU(h_rgb, h_gray_ref, W, H);
    sobelCPU(h_gray_ref, h_sobel_ref, W, H);

    int h_Gx[3][3] = {{-1, 0, 1}, {-2, 0, 2}, {-1, 0, 1}};
    int h_Gy[3][3] = {{-1, -2, -1}, { 0, 0, 0}, { 1, 2, 1}};
    CUDA_CHECK(cudaMemcpyToSymbol(c_Gx, h_Gx, sizeof(h_Gx)));
    CUDA_CHECK(cudaMemcpyToSymbol(c_Gy, h_Gy, sizeof(h_Gy)));

    unsigned char *d_rgb, *d_gray, *d_sobel;
    CUDA_CHECK(cudaMalloc(&d_rgb, rgbBytes));
    CUDA_CHECK(cudaMalloc(&d_gray, grayBytes));
    CUDA_CHECK(cudaMalloc(&d_sobel, grayBytes));

    CUDA_CHECK(cudaMemcpy(d_rgb, h_rgb.data(), rgbBytes, cudaMemcpyHostToDevice));

    dim3 block(16, 16);
    dim3 grid((W + block.x - 1) / block.x,
              (H + block.y - 1) / block.y);

    convertToGrayscale<<<grid, block>>>(d_rgb, d_gray, W, H);
    CUDA_CHECK(cudaGetLastError());

    applySobelFilter<<<grid, block>>>(d_gray, d_sobel, W, H);
    CUDA_CHECK(cudaGetLastError());

    CUDA_CHECK(cudaDeviceSynchronize());
    CUDA_CHECK(cudaMemcpy(h_sobel.data(), d_sobel, grayBytes, cudaMemcpyDeviceToHost));

This section shows the value of a pipeline on the GPU: d_gray acts as a device-side bridge between the two kernels, so we do not copy intermediate data back to the CPU. We check cudaGetLastError() after each launch to ensure any configuration or resource errors are caught immediately at the relevant stage. Because both kernels are launched into the same stream (the default stream), the CUDA driver guarantees they execute in the order they were issued, meaning the Sobel kernel reads the grayscale image only after the first kernel has finished writing its results.

The last step is to save the output, compare it with the CPU reference, print the status, and release device memory. Notice that the comparison allows a difference of 1 instead of demanding exact equality. That small tolerance is useful here because floating-point math and casting can produce tiny rounding differences, even when the overall result is correct.

    std::ofstream after("after.raw", std::ios::binary);
    after.write(reinterpret_cast<const char*>(h_sobel.data()), h_sobel.size());
    after.close();

    bool success = true;
    for (int i = 0; i < W * H; ++i) {
        if (std::abs((int)h_sobel[i] - (int)h_sobel_ref[i]) > 1) {
            success = false;
            break;
        }
    }

    std::cout << "Edge Detection Pipeline: "
              << (success ? "SUCCESS" : "FAILURE") << std::endl;

    CUDA_CHECK(cudaFree(d_rgb));
    CUDA_CHECK(cudaFree(d_gray));
    CUDA_CHECK(cudaFree(d_sobel));
    return success ? 0 : 1;
}

A few final details are worth noticing:

• after.raw stores the final Sobel image as raw grayscale bytes
• The loop checks every pixel against h_sobel_ref
• All device buffers (d_rgb, d_gray, d_sobel) are freed before the program exits

When everything matches, the program prints:

Edge Detection Pipeline: SUCCESS

To better understand the effect of the Image Filter Pipeline, we can compare the raw input data against our processed results.

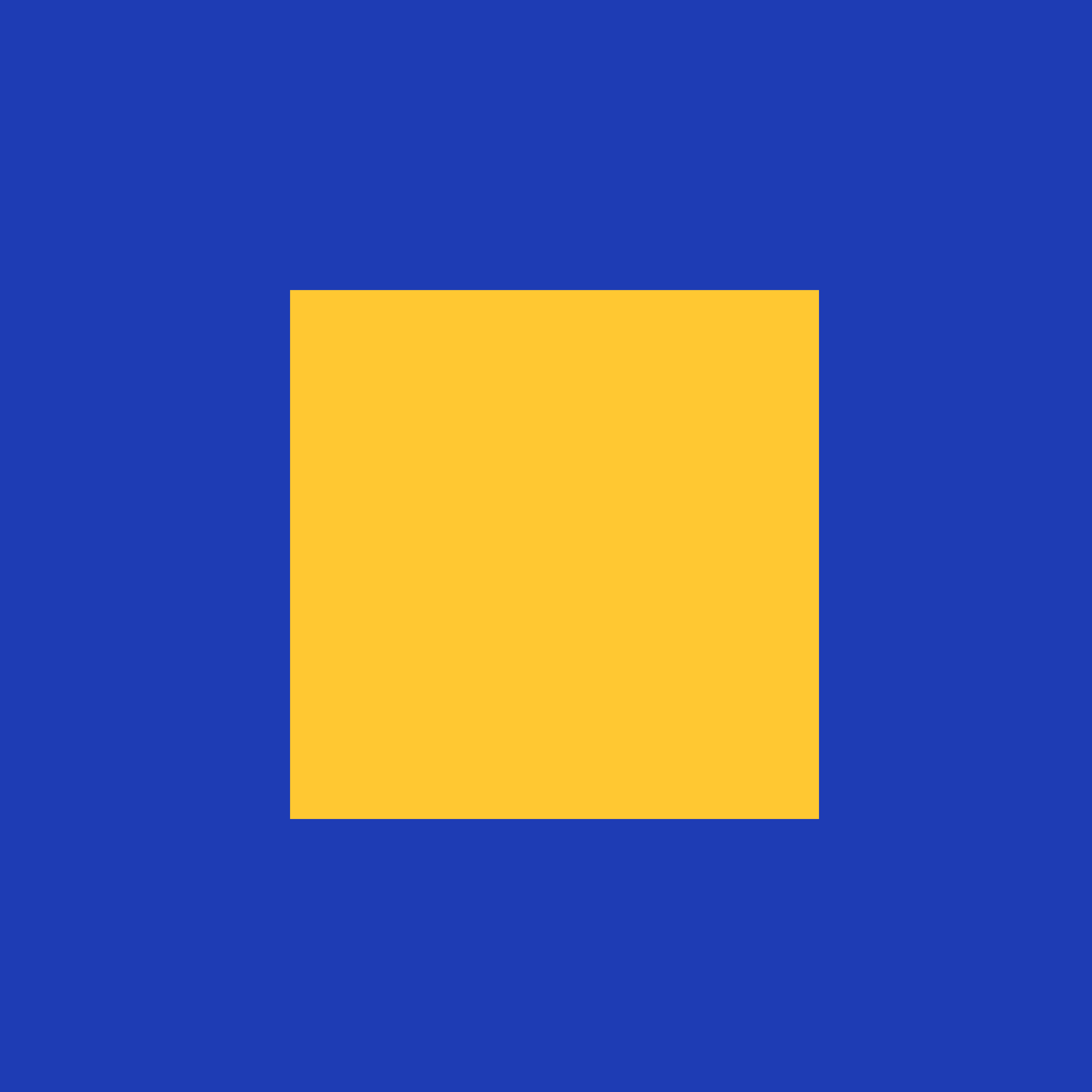

The original image contains a bright yellowish square set against a dark blue background:

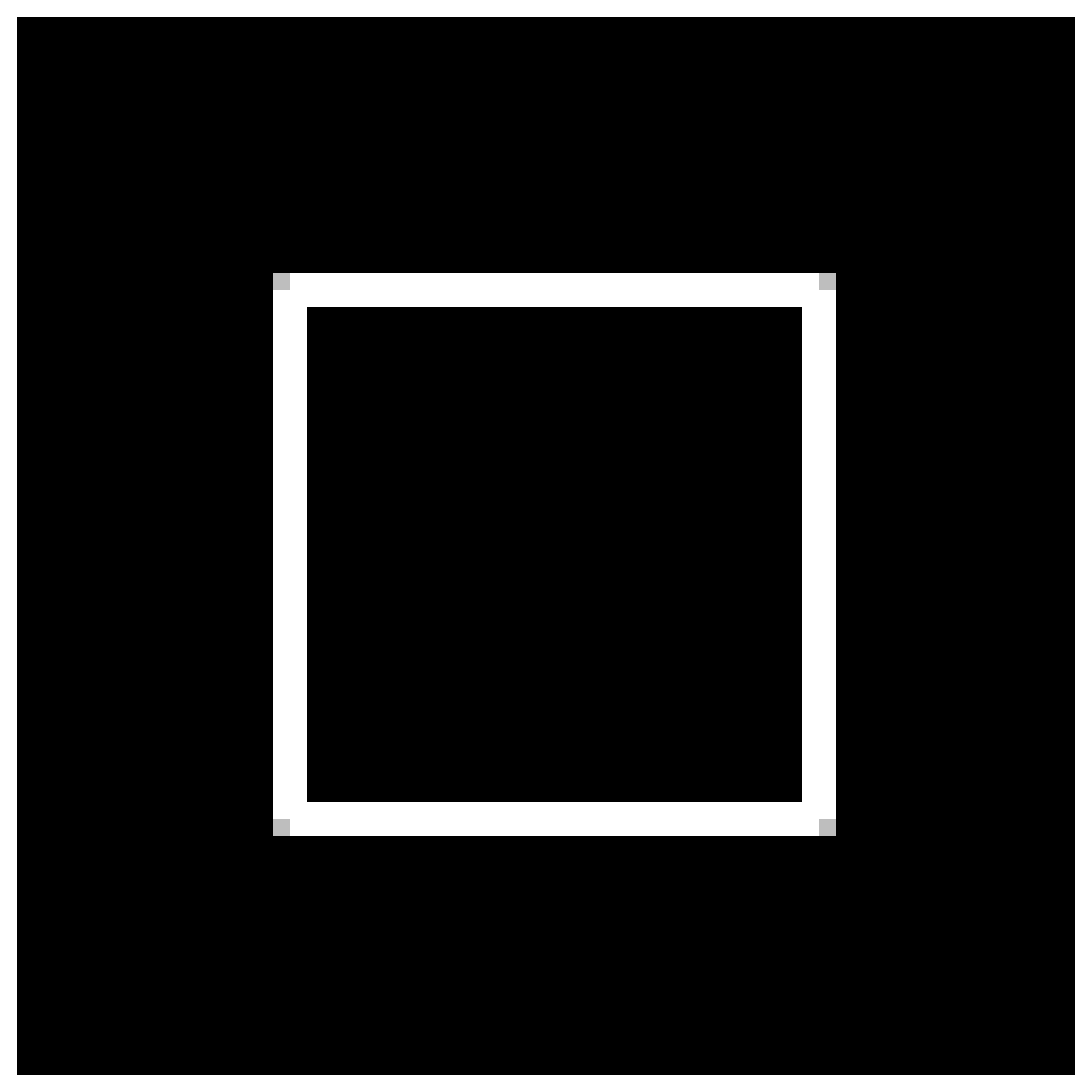

After the CUDA kernels run, the grayscale conversion and Sobel operator isolate the boundaries between these regions:

Notice how the flat, solid-colored areas become dark, while the edges of the square are highlighted as bright lines. This visual result confirms that our pipeline correctly transformed the three-channel input into a single-channel map of intensity gradients, identifying exactly where the brightness changes most sharply.

In this lesson, we built a full image filter pipeline on the GPU: RGB input, grayscale conversion, Sobel edge detection, result export, and CPU-based validation. We also introduced __constant__ memory, a powerful way to store read-only filter weights that all threads need to access.

This is an important step forward because we are no longer applying one isolated filter; we are chaining stages together while keeping the intermediate data on the device and optimizing our data access patterns. In the practice section ahead, we will reinforce this flow by implementing the stages ourselves.
